Key Features
â—† High-frequency online double conversion
â—† Output power factory is 1.0 with DSP-controlled
â—† Active PFC, input PF > 0.99
â—† Battery-free startup
â—† Wide input voltage: 55V-145V
â—† Wide input frequency: 40-70Hz
â—† Generator-compatible
â—† Cold start capability
â—† Optional Remote On/Off (ROO)
â—† Auto-sensing 50Hz/60Hz
â—† Frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output
â—† Supports laser printers & ultrasound systems (custom)
â—† Communication: RS232 (std), USB/MODBUS/RS485/SNMP/AS400 (opt)
â—† Robust design: FR4 PCB, optimized cooling, conformal coating
â—† Support CVCF (Constant Voltage,Constant Frequency) operation, support special voltage ,frequency devices, and is ideal for highly sensitive devices
Specification
| Accept Deeply Customized Products  | ||
| Model | Winwin 6KRL | Winwin 10KRL |
| Capacity | 6KVA/6KW | 10KVA/10KW |
| Phase | Single phase input single phase output | |
| AC INPUT | ||
| Wiring | 1 phase 3 wires ( L/N+PE) | |
| Rated Voltage | 110/115/120/127VAC | |
| Voltage Range | Line-Neutral: 55~145VAC | |
| Frequency Range | 40Hz~70Hz | |
| Input Power Factor | ≥0.99 | |
| AC OUTPUT | ||
| Wiring | 1 phase（L/N+PE） | |
| Output Voltage | 110/115/120/127VAC | |
| Voltage Regulation | ±2% | |
| Output Frequency | 50/60±4Hz(Synchronized range); 50/60Hz±0.1(Battery mode) | |
| Waveform | Pure sine wave | |
| Power Factor | 1.0Â | |
| Distortion (THDV%) | <2%(Linear Load) , <8% (Non-Linear Load) | |
| Overload Capability | 10min@105%~125% ;Â Â Â Â 60s@125%~150% ;Â Â Â 0.5S@>150% | |
| EFFICIENCY | ||
| Line Mode | up to 92% | |
| Battery Mode | up to 92% | |
| ECOÂ mode | 97% | |
| BATTERY & CHARGER | ||
| Rated Battery Voltage | 192VDC (external) | |
| Battery Capacity & Backup Time | Â Depend on the capacity of external battery | |
| Charging Current | Long backup time model :4A | |
| HMI | ||
| LCD Display | Input mains voltage, frequency, load level, operation mode, health status | |
| Standards Communication Interface | (1)Â RS232 port | |
| Optional | (2) EPO / ROO port   (3) Intelligent slot   (4) USB port (5) NetWork card: Support remote monitor the UPS via smart phone APP, web page,PC monitor software, support server/NAS shutdown (6) CMC MODBUS card (7) AS400 relay card (8) SNMP card |
|
| ENVIRONMNET | ||
| Temperature Range | -10~50oC | |
| Relative Humidity | 0-98%（Non-condensing） | |
| Acoustics Noise | <55dB @ 1 meters | |
| PHYSICALÂ Â | ||
| Dimension WxDxH (mm) |

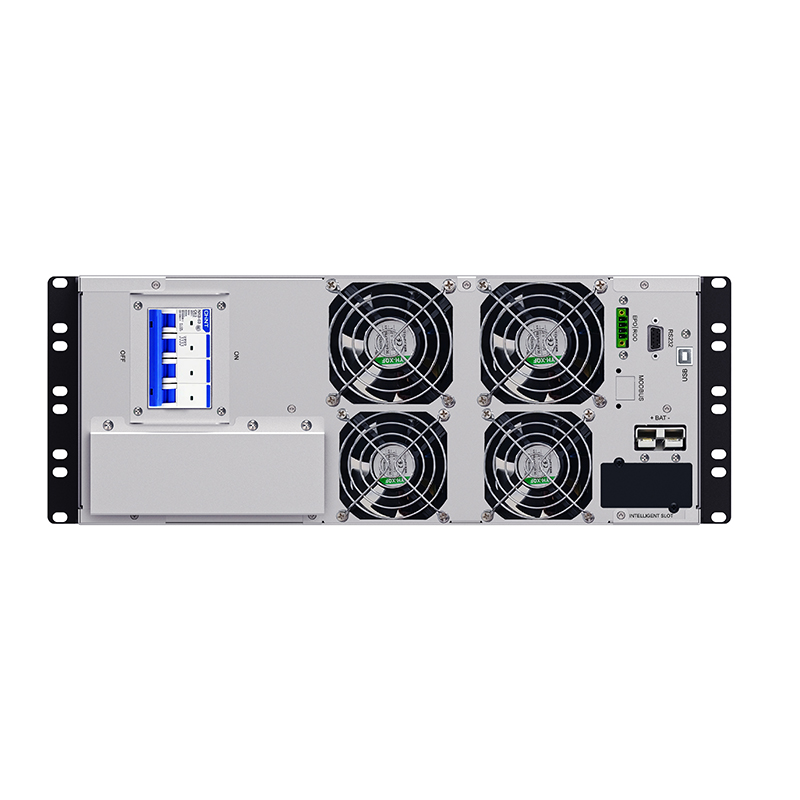

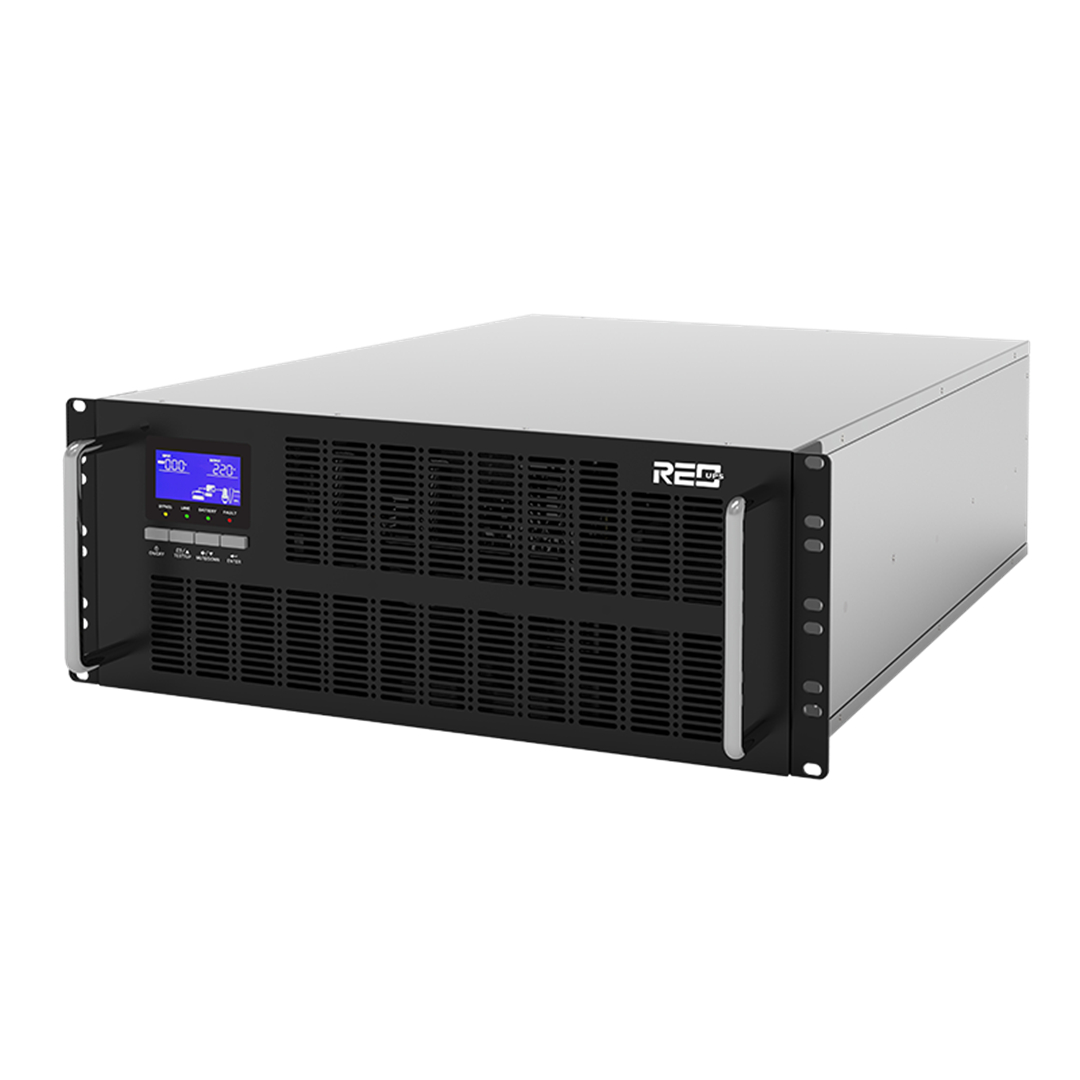

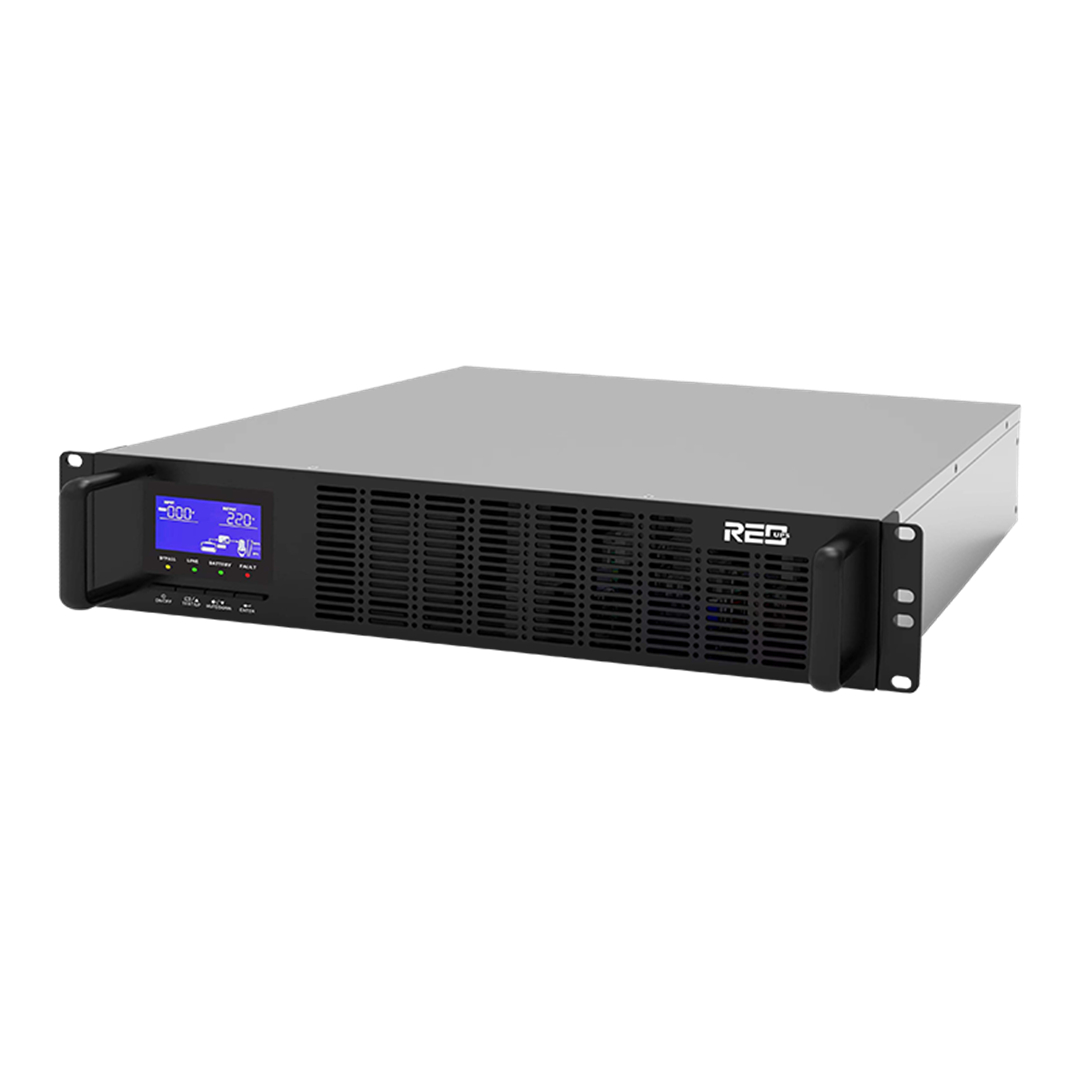

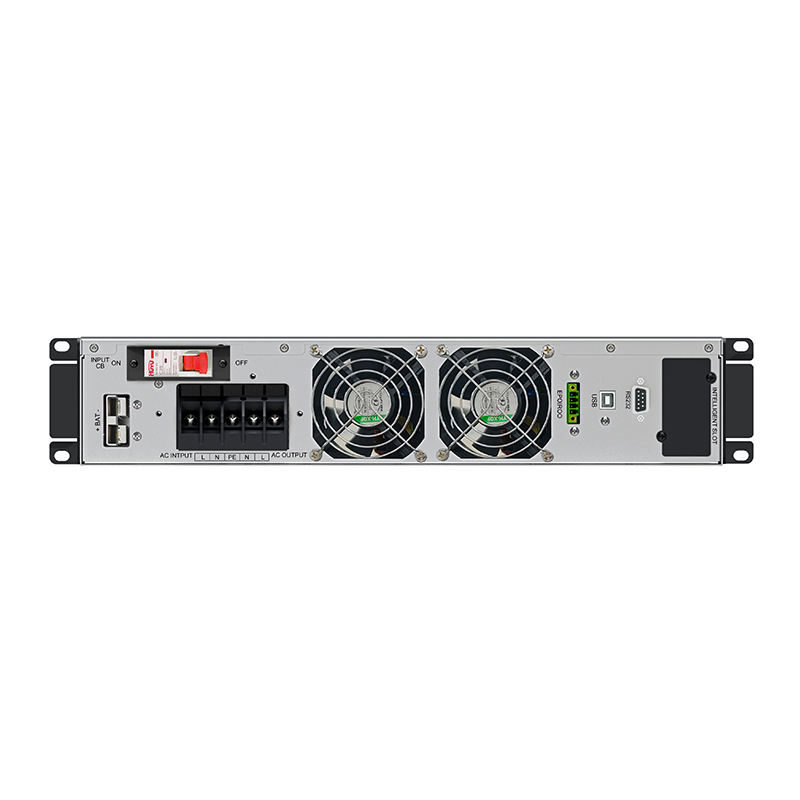

440x493x88(2U) | 440x532x176 (4U) |
| N.W (kg) | 12.6 | 24.1 |
• Product specifications are subject to change without prior notice
• Ambient temperature>30°C, output power factor is 0.9
• Model with"L" mean long back up time model, without "L" mean standard model
Production images
Product packaging
FAQ
-
What is the warranty period for your UPS products?
 We offer a standard 2years warranty (after shipping) on our UPS systems. -
