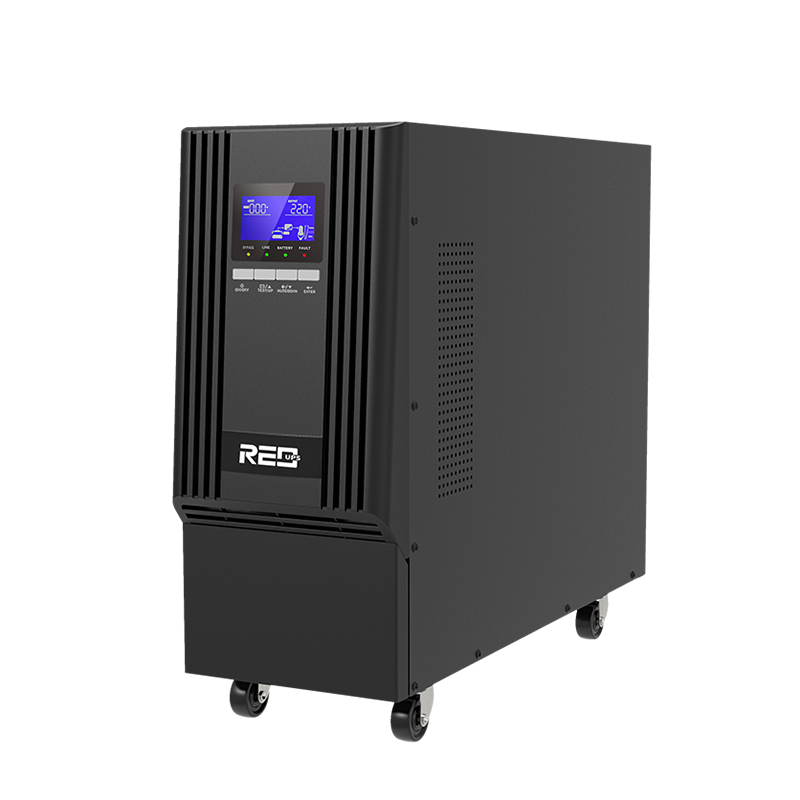

110V Nobreak Senoidal Online UPS 6~10KVA

Model

Winwin 6K

Winwin 6KL

Winwin 10K

Winwin 10KL

Capacity

6KVA/6KW

10KVA/10KW

Phase

Single phase input single phase output

AC INPUT

Wiring

1 phase 3 wires ( L/N+PE)

Rated Voltage

110/115/120/127Vac

Voltage Range

Line-Neutral: 55~145VAC

Frequency Range

40Hz-70Hz

Input Power Factor

≥0.99

AC OUTPUT

Wiring

1 phase  (L/N+PE)

Output Voltage

110/115/120/127VAC

Voltage Regulation

±2%

Output Frequency

50/60±4Hz(Synchronized range);  50/60Hz±0.1(Battery mode)

Waveform

Pure sine wave

Power Factor

1.0

Distortion (THDV%)

<2%(Linear Load) , <8%(Non-Linear Load)

Over load capability

10min@105%~125% ;     60s@125%~150% ;      0.5S@>150%

EFFICIENCY

Line Mode

up to 92%

Battery Mode

up to 92%

ECO  mode

97%

BATTERY & CHARGER

Rated Battery Voltage

192VDC
Internal

192VDC
External

192VDC
Internal

192VDC
External

Battery Capacity

12V/7AH x 16pcs

External battery depends

12V/9AH x16pcs

External battery depends

Backup Time

>10mins @ half load

>6mins @ half load

Charging Current

Standard model with internal battery : 2A/4A (settable by LCD),  Long backup time model :4A

Optional Configuration to Order

1. External battery socket for standard model
2. Battery capacity 7AH/9AH

HMI

LCD Display

Input mains voltage, frequency, load level, operation mode, health status

Standards

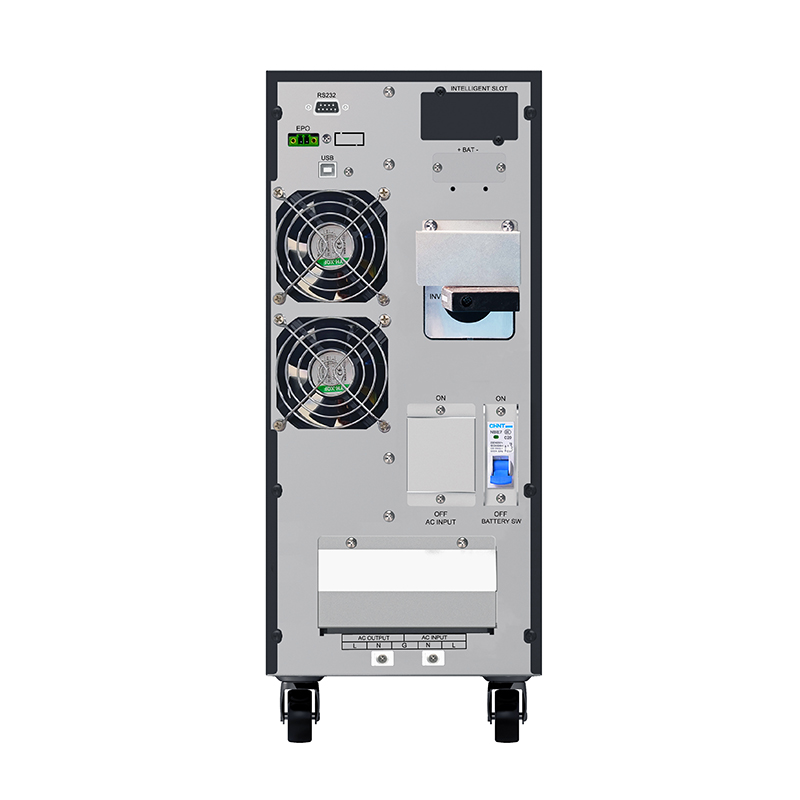

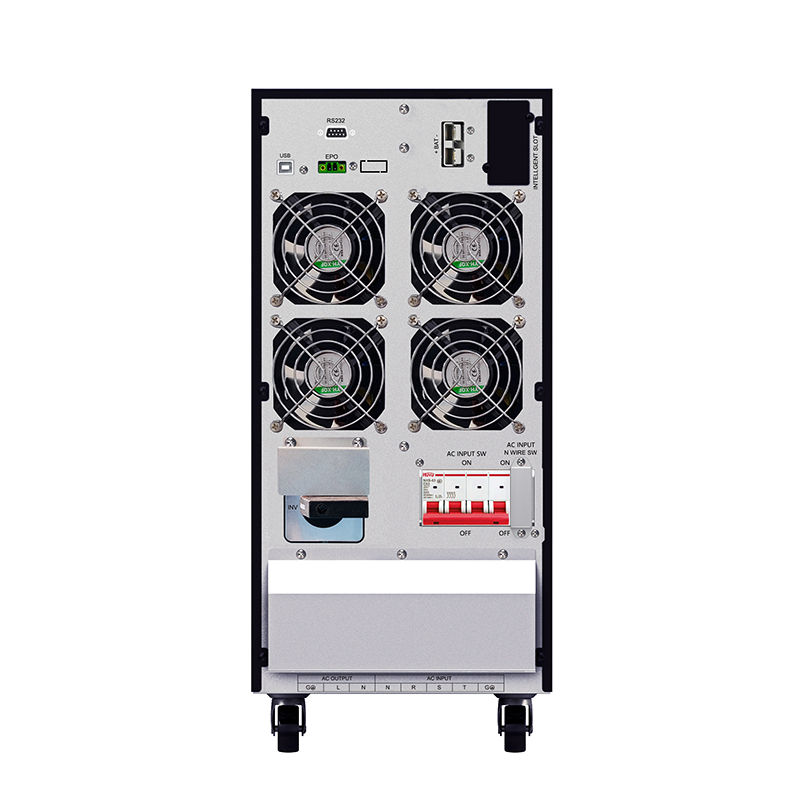

Communication Interface

(1) RS232 port

Optional

(2) EPO / ROO port   (3) Intelligent slot   (4) USB port
(5) NMC Card:  Support remote monitor the UPS via Smart phone APP, web page,PC monitor software , support server / NAS shutdown
(6) CMC MODBUS card
(7) AS400 Relay card
(8) SNMP card

ENVIRONMENT

Temperature range

-10~50^oC
