Key Features
◆ High-frequency online double conversion
◆ Output power factory is 1.0 with DSP-controlled
◆ Active PFC, input PF > 0.99
◆ Battery-free startup
◆ Wide input voltage: 90V-300V
◆ Wide input frequency: 40-70Hz
◆ Generator-compatible
◆ Cold start capability
◆ Optional Remote On/Off (ROO)
◆ Auto-sensing 50Hz/60Hz
◆ Frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆ Supports laser printers & ultrasound systems (custom)
◆ Communication: RS232 (std), USB/MODBUS/RS485/SNMP/AS400 (opt)
◆ Robust design: FR4 PCB, optimized cooling, conformal coating
◆ Support CVCF (Constant Voltage,Constant Frequency) operation, support special voltage ,frequency devices, and is ideal for highly sensitive devices
Specification
| Accept Deeply Customized Products | ||
| Model | Maxwin 6KRL | Maxwin 10KRL |
| Capacity | 6KVA/6KW | 10KVA/10KW |
| AC INPUT | ||
| Wiring | L/N+PE | |
| Rated Voltage | 208/220/230/240Vac | |
| Voltage Range | 90~300VAC | |
| Frequency Range | 40Hz-70Hz | |
| Input Power Factor | ≥0.99 | |
| AC OUTPUT | ||
| Wiring | L/N+PE | |
| Output Voltage | 208/220/230/240VAC | |
| Voltage Regulation | ±1% | |
| Output Frequency | 50/60±4Hz (Synchronized range); 50/60Hz±0.1(Battery mode) | |
| Waveform | Pure Sine Wave | |
| Power Factor | 1.0 | |
| Distortion (THDV%) | <2%(Linear Load) ; <7%(None-Linear Load) | |
| Overload Capability | 10Min@105%~125% rated load 60Sec.@125%~150% rated load 0.5Sec.@>150% rated load |
|
| EFFICIENCY | ||
| Line Mode | 94% @240VDC, 92% @192VDC | |
| Battery Mode | 94% @240VDC, 92% @192VDC | |
| ECO mode | 97% | |
| BATTERY & CHARGER | ||
| Rated Battery Voltage | 192/240VDC External Battery | |
| Battery Capacity | Depend on the capacity of external battery | |
| Backup Time | Depend on the capacity of external battery | |
| Charging Current | Long backup time model :4A | |
| HMI | ||
| LCD Display | Input mains voltage, frequency, load level, operation mode, health status | |
| Standards Communication Interface | (1) RS232 port | |
| Optional | (2) EPO / ROO port (3) Intelligent slot (4) USB port (5) NMC Card: Support remote monitor the UPS via Smart phone APP, web page,PC monitor software , support server / NAS shutdown (6) CMC MODBUS card (7) AS400 Relay card (8) SNMP card |
|
| ENVIRONMENT | ||
| Temperature range | -10~50oC | |
| Relative Humidity | 0-98%（Non-condensing） | |
| Acoustics Noise | <55dB @ 1 meters | |
| PHYSICAL | ||
| Dimension WxDxH (mm) |
440x493x88(2U) | |
| N.W (kg) | 10.8 | 12.6 |
• Product specifications are subject to change without prior notice
• Ambient temperature>30°C, output power factor is 0.9
• Model with"L" mean long back up time model, without "L" mean standard model

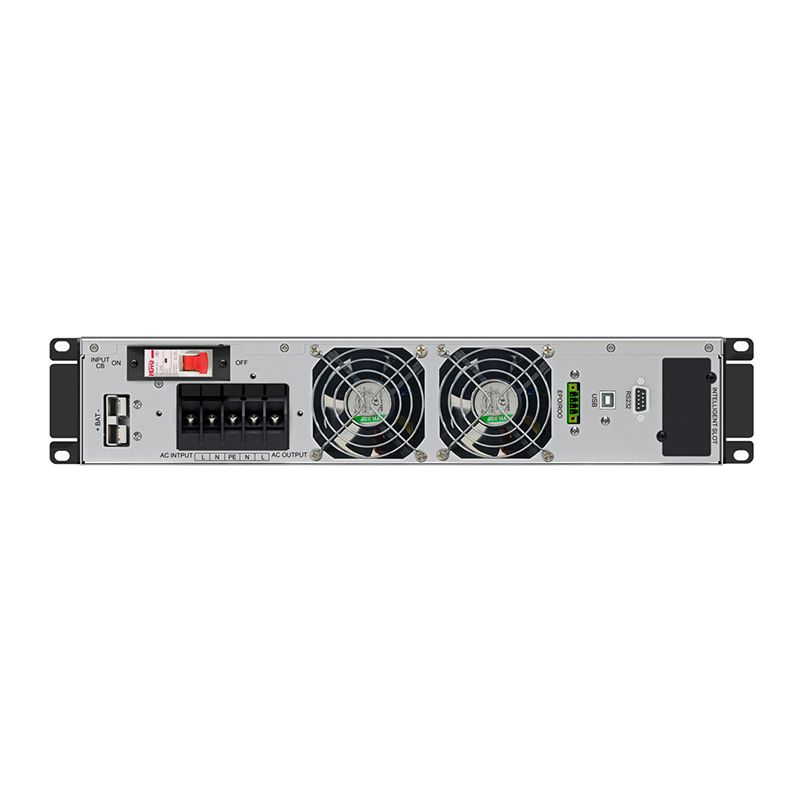

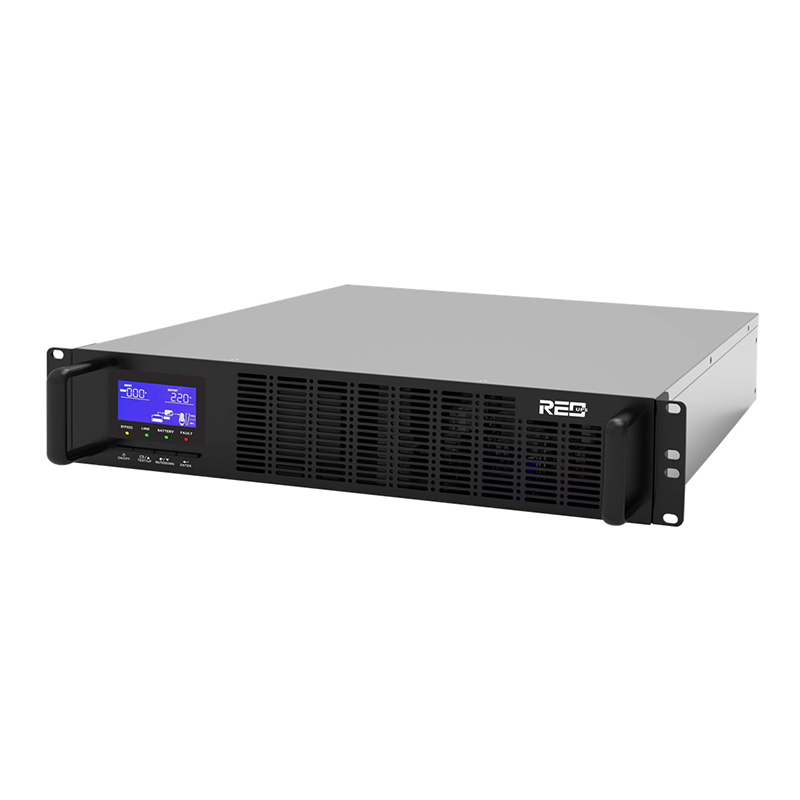

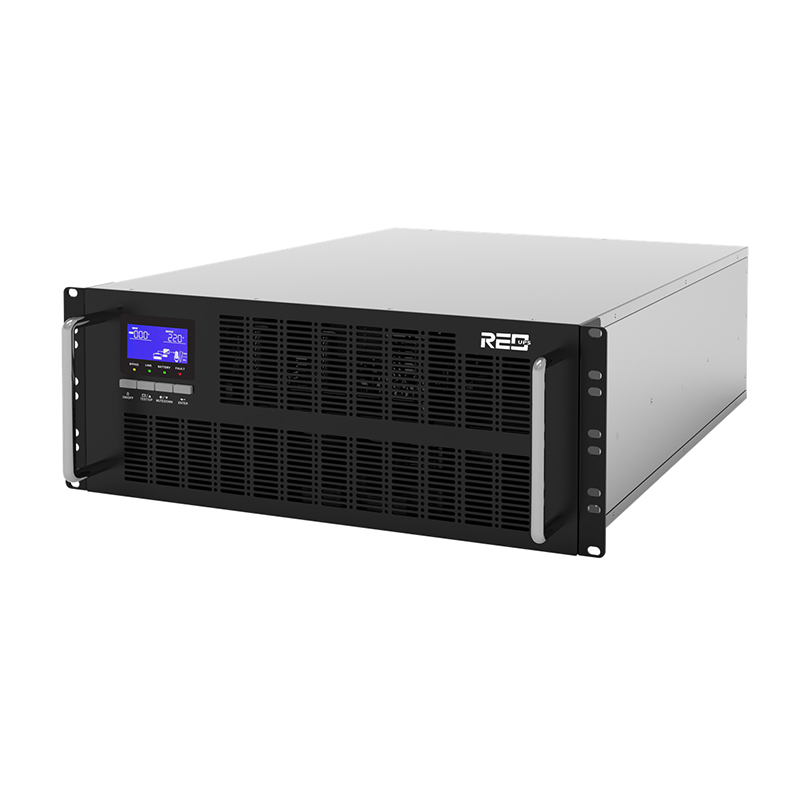

Production images
