Key Features
◆ High-frequency online double conversion
◆ DSP-controlled
◆ Active PFC, input PF > 0.99
◆ Battery-free startup
◆ Wide input voltage: 90V-300V
◆ Wide input frequency: 40-70Hz
◆ Generator-compatible
◆ Cold start capability
◆ Optional Remote On/Off (ROO)
◆ ECO mode
◆ Auto-sensing 50Hz/60Hz
◆ Frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆ Supports laser printers & ultrasound systems (custom)
◆ Communication: RS232 (std), USB/MODBUS/RS485/SNMP/AS400 (opt)
◆ Robust design: FR4 PCB, optimized cooling, conformal coating
Specification
| Accept Deeply Customized Products | ||||||
| Model | Maxwin 1K | Maxwin 1KL | Maxwin 2K | Maxwin 2KL | Maxwin 3K | Maxwin 3KL |
| Capacity | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | |||
| AC INPUT | ||||||
| Wiring | L/N+PE | |||||
| Rated Voltage | 208/220/230/240VAC | |||||
| Voltage Range | 90~300VAC | |||||
| Frequency Range | 40Hz~70Hz | |||||
| Input Power Factor | ≥0.99 | |||||
| AC OUTPUT | ||||||
| Wiring | L/N+PE | |||||
| Output Voltage | 208/220/230/240VAC | |||||
| Voltage Regulation | ±1% | |||||
| Output Frequency | 50/60±4Hz(Synchronized range); 50/60Hz±0.1(Battery mode) | |||||
| Waveform | Pure sine wave | |||||
| Power Factor | 1.0 | |||||
| Distortion (THDV%) | <2%(Linear Load); <7%(Non-Linear Load) | |||||
| Overload capability | 1Min@105%~125%Rated Load ; 30Sec.@125%~150%Rated Load ; 0.5Sec.@>150%Rated Load | |||||
| EFFICIENCY | ||||||
| Line Mode | 89% | 90% | 91% | |||
| Battery Mode | 86% | 87% | 88% | |||
| ECO mode | 95% | |||||
| BATTERY & CHARGER | ||||||
| Rated Battery Voltage | 24VDC Internal |
36VDC External |
48VDC Internal |
72VDC External |
72VDC Internal |
72VDC External |
| Battery Capacity | 7AHx2pcs | External Battery Depends | 7AHx4pcs | External Battery Depends | 7AHx6pcs | External Battery Depends |
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load | |||
| Charging Current | Standard model with internal battery:1A ; Long backup time model :4A | |||||
| Optional Configuration to Order | 1. External battery connector for standards model 2. Battery Capacity 7AH/9AH 3. Battery Quantity(2/4/6pcs) or (3/6/6pcs) |
|||||
| HMI | ||||||
| LCD Display | Input mains voltage, frequency, load level, operation mode, health status | |||||
| Standards Communication Interface | 1.RS232 port | |||||
| Optional | (2) EPO / ROO port (3) Intelligent slot (4) USB port (5) NMC Card: Support remote monitor the UPS via Smart phone APP, web page,PC monitor software , support server / NAS shutdown (6) CMC MODBUS card (7) AS400 Relay card (8) SNMP card |
|||||
| ENVIRONMENT | ||||||
| Temperature Range | -10~50oC | |||||
| Relative Humidity | 0-98%（Non-condensing） | |||||
| Acoustics Noise | <55dB @ 1 meters | |||||
| PHYSICAL | ||||||
| Dimension WxDxH (mm) |
144x358x224 | 190x380x323 | ||||
| Weight (kg) | 8.8 | 4.7 | 15.8 | 8.6 | 20.7 | 7.7 |
• Product specifications are subject to change without prior notice
• Ambient temperature>30°C, output power factor is 0.9
• Model with"L" mean long back up time model, without "L" mean standard model

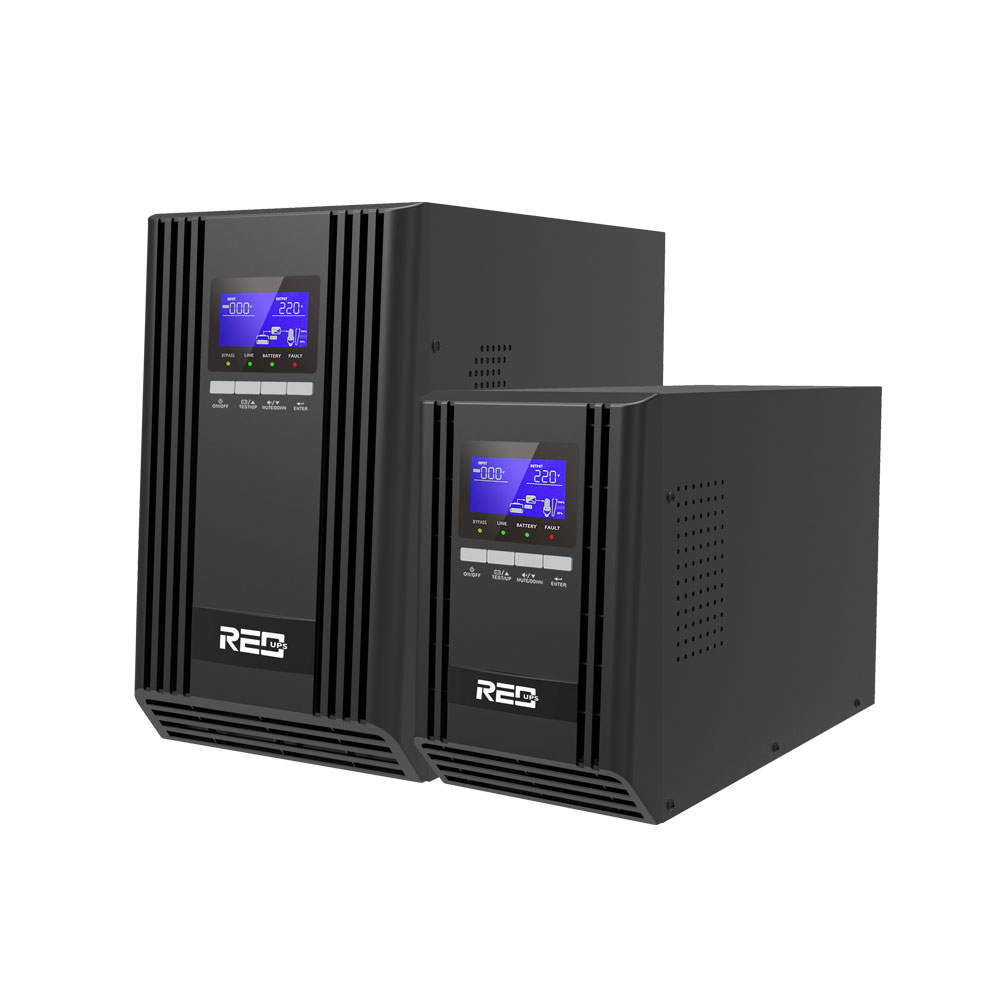

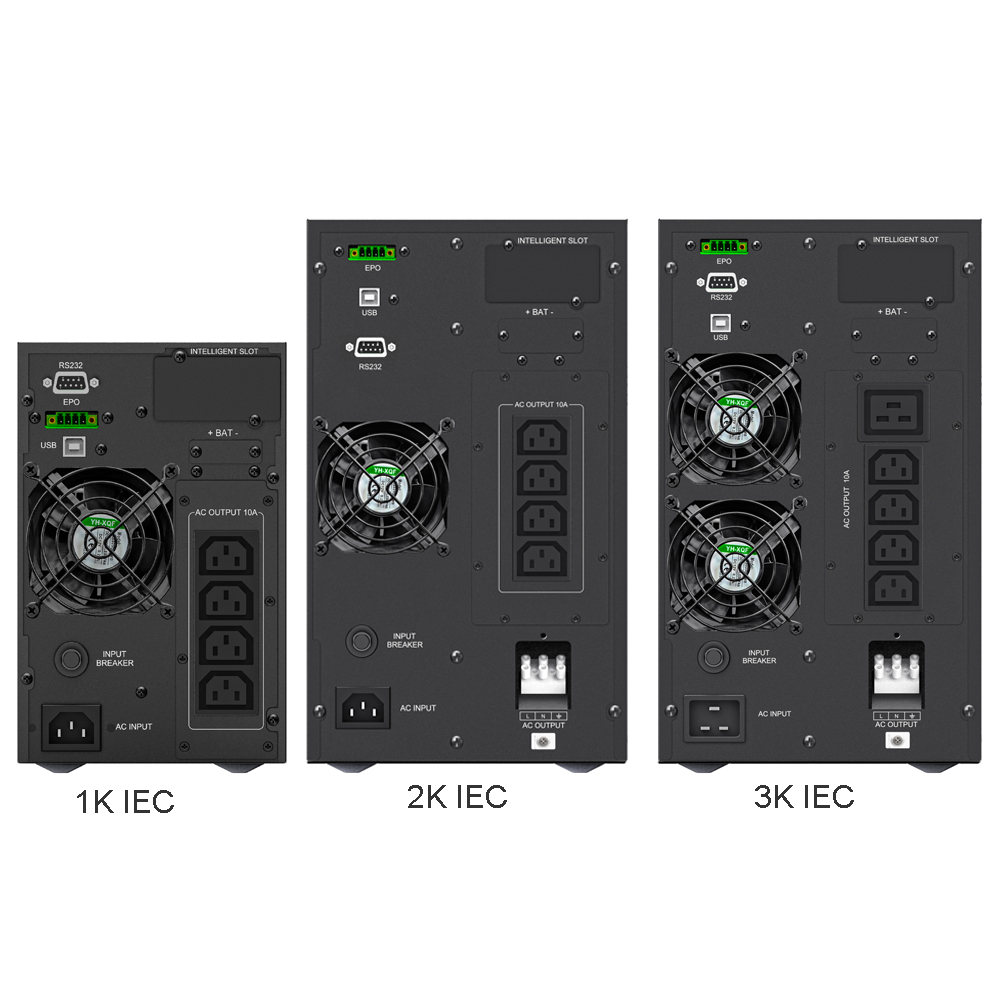

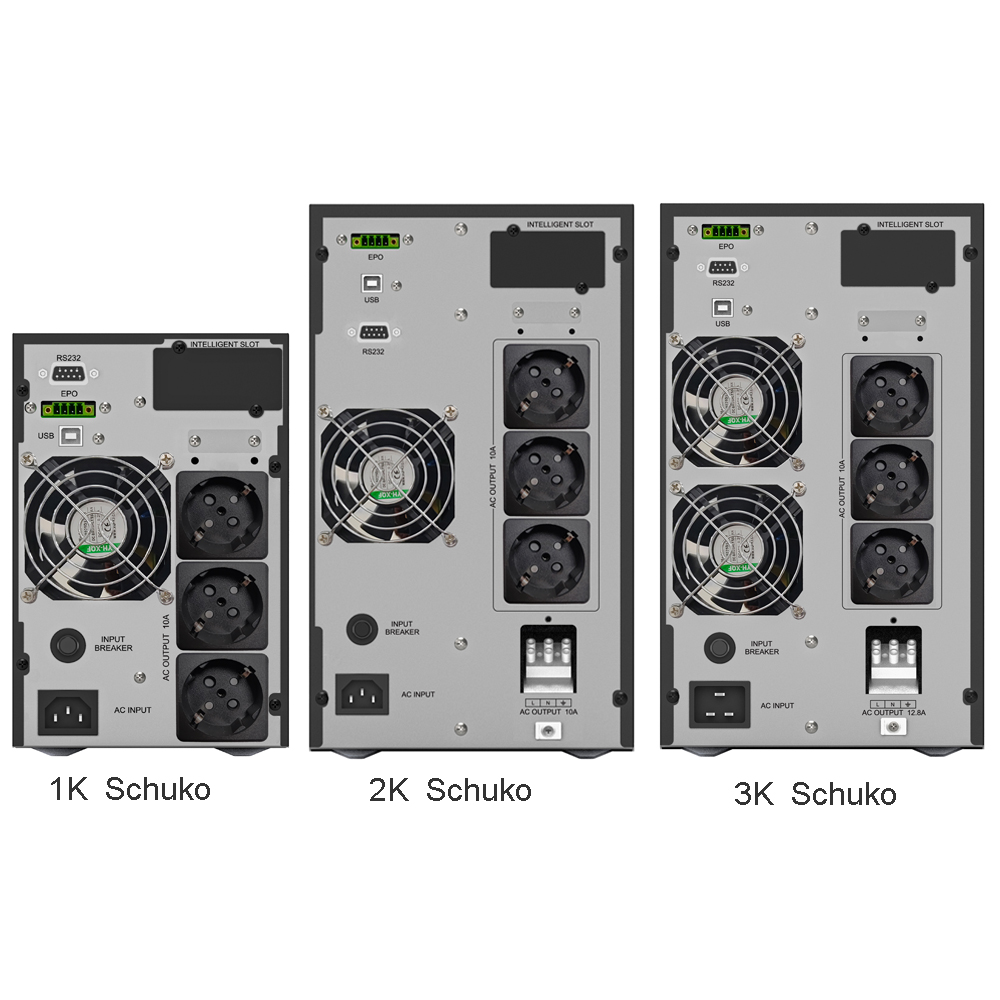

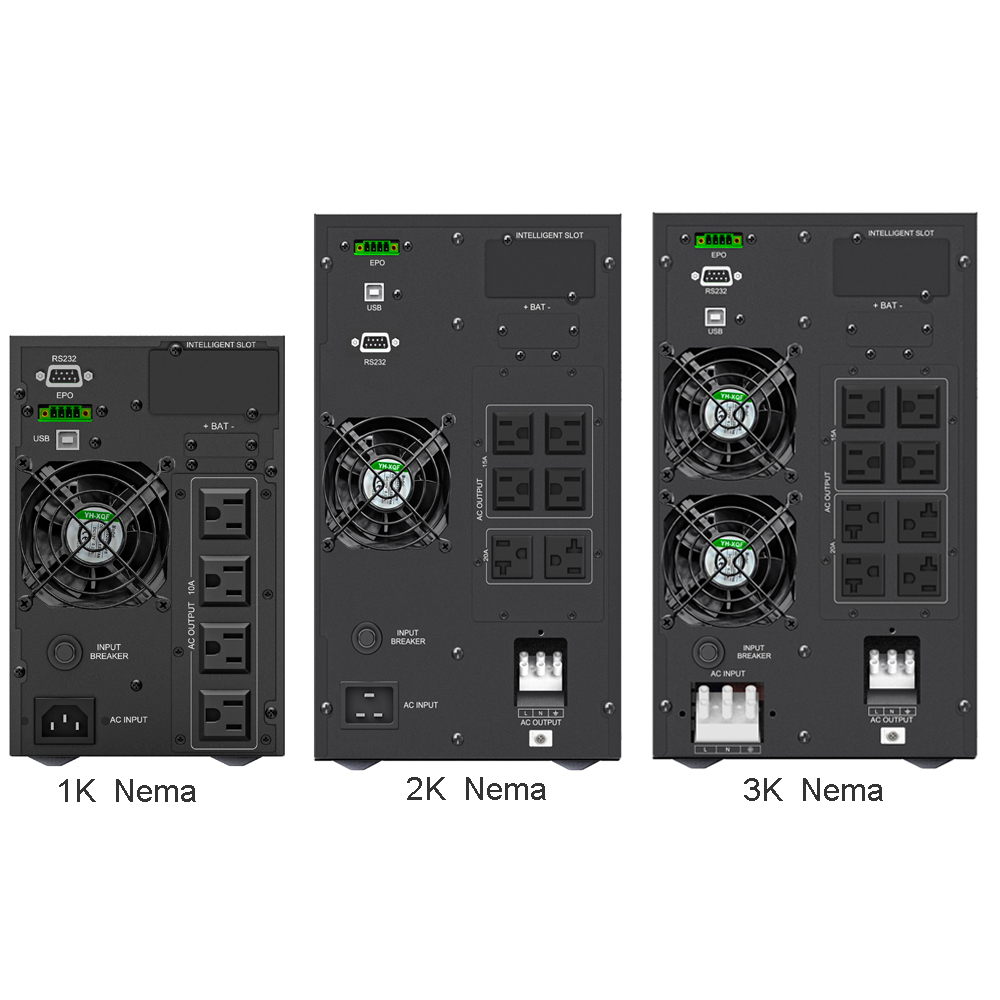

Production images
Product packaging
FAQ
-
1, What is the maximum load capacity of your UPS?
-
2, Do you offer extended warranty options?
-
3, How do I calculate the required UPS capacity for my equipment?
-
4, Can the UPS be used with medical equipment?
-
5, Do you offer custom configurations?
-
6, What is the response time of your UPS during a power outage?
- The response time is typically less than 10 milliseconds. This time period ensures the normal operation of the equipment.
