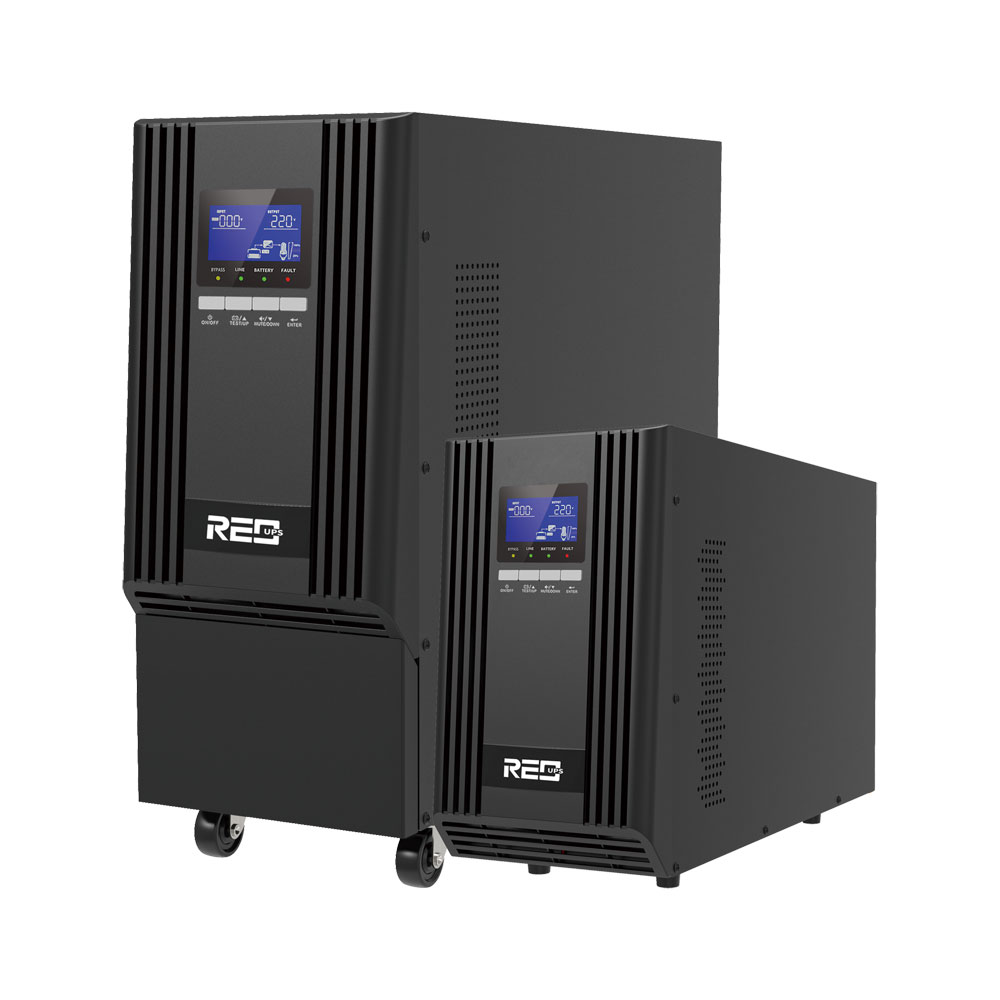

Key Features
◆ High frequency on-line double conversion
◆ DSP (Digital signal processors) control
◆ Active input power factor correction, input power factor>0.99
◆ 6-10K three level inverter technology, lower harmonic, higher efficiency
◆ Wide input voltage range 90V~300V and frequency range 40~70Hz
◆ Generator compatible
◆ Cold start function
◆ Remote on off (ROO) function (optional)
◆ Economic operation mode (ECO)
◆ 50Hz/60Hz Frequency auto sensing
◆ Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆ Laser printer and ultrasound system load acceptable (customized)
◆ Communications:RS232(standard), USB / MODBUS / RS485 / SNMP / AS400 card (optional)
◆ Reliable design, made with strong glass fiber base (FR4) double side PCB, well designed ventilation and conformal coating
Specification
| Accept Deeply Customized Products | ||||
| Model | Maxwin 6K | Maxwin 6KL | Maxwin 10K | Maxwin 10KL |
| Capacity | 6KVA/6KW | 10KVA/10KW | ||
| AC INPUT | ||||
| Wiring | L/N+PE | |||
| Rated Voltage | 208/220/230/240Vac | |||
| Voltage Range | 90~300VAC | |||
| Frequency Range | 40Hz~70Hz | |||
| Input Power Factor | ≥0.99 | |||
| AC OUTPUT | ||||
| Wiring | L/N+PE | |||
| Output Voltage | 208/220/230/240VAC | |||
| Voltage Regulation | ±1% | |||
| Output Frequency | 50/60±4Hz(Synchronized range); 50/60Hz±0.1(Battery mode) | |||
| Waveform | Pure Sine Wave | |||
| Power Factor | 1.0 | |||
| Distortion (THDV%) | <2%(Linear Load) ; <7%(Non-Linear Load) | |||
| Overload Capability | 10Min@105%~125% rated load 60Sec.@125%~150% rated load 0.5Sec.@>150% rated load |
|||
| EFFICIENCY | ||||
| Line Mode | 94% @240VDC, 92% @192VDC | |||
| Battery Mode | 94% @240VDC, 92% @192VDC | |||
| ECO mode | 97% | |||
| BATTERY & CHARGER | ||||
| Rated Battery Voltage | 192VDC Internal |
192/240VDC External |
192VDC Internal |
192/240VDC External |

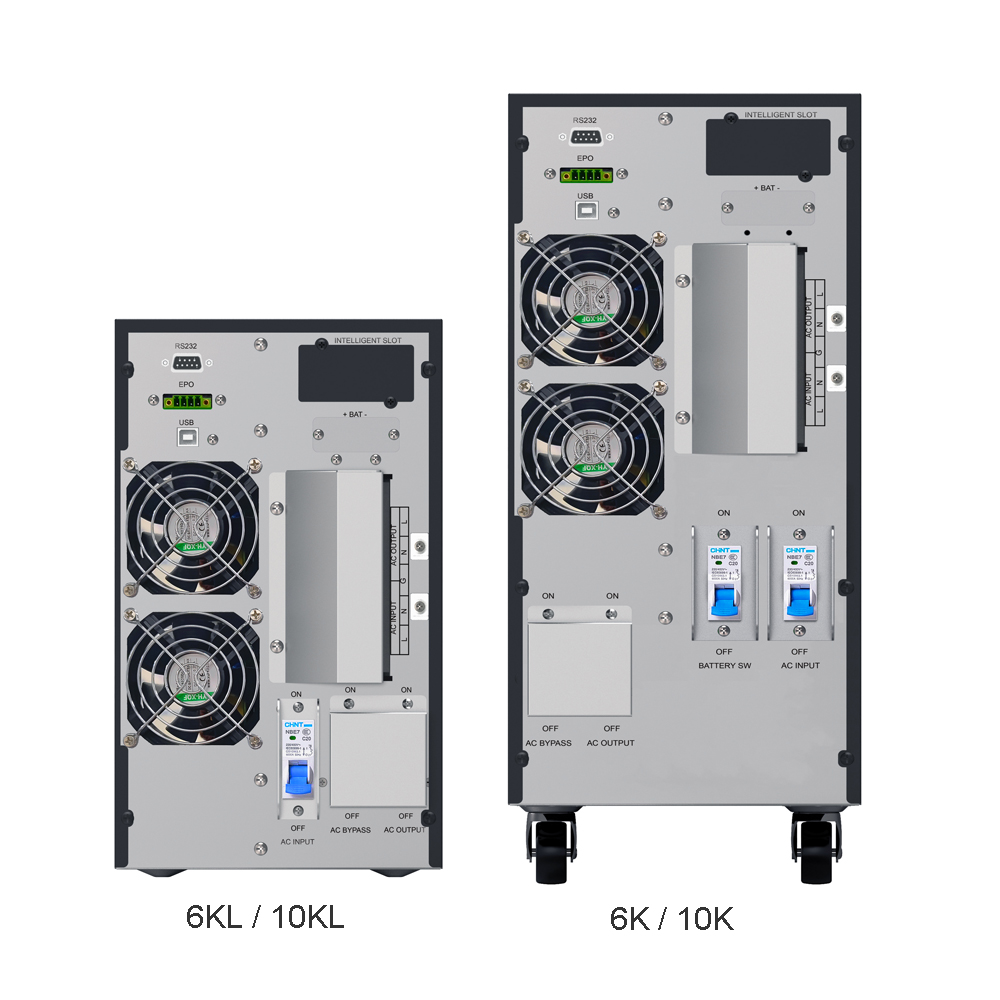

| Battery Capacity | 7AHx16pcs | External Battery Depends | 7AHx16Pcs | External Battery Depends |
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | ||
| Charging Current | Standard model with internal battery: 2A/4A (settable by LCD) ；Long backup time model :4A | |||
| HMI | ||||
| LCD DISPLAY | Input mains voltage, frequency, load level, operation mode, health status | |||
| Standards Communication Interface | (1) RS232 port | |||
| Optional | (2) EPO / ROO port (3) Intelligent slot (4) USB port (5) NMC Card: Support remote monitor the UPS via Smart phone APP, web page,PC monitor software , support server / NAS shutdown (6) CMC MODBUS card (7) AS400 Relay card (8) SNMP card |
|||
| ENVIRONMENT | ||||
| Temperature range | -10~50oC | |||
| Relative Humidity | 0-98%（Non-condensing） | |||
| Acoustics Noise | <55dB @ 1 meters | |||
| PHYSICAL | ||||
| Dimension WxDxH (mm) |
190x586x472 | 190x399x323 | 190x586x472 | 190x562x340 |
| N.W(kg) | 49.5 | 9.9 | 50.7 | 13.5 |
• Product specifications are subject to change without prior notice
• Ambient temperature>30°C, output power factor is 0.9
• Model with"L" mean long back up time model, without "L" mean standard model
