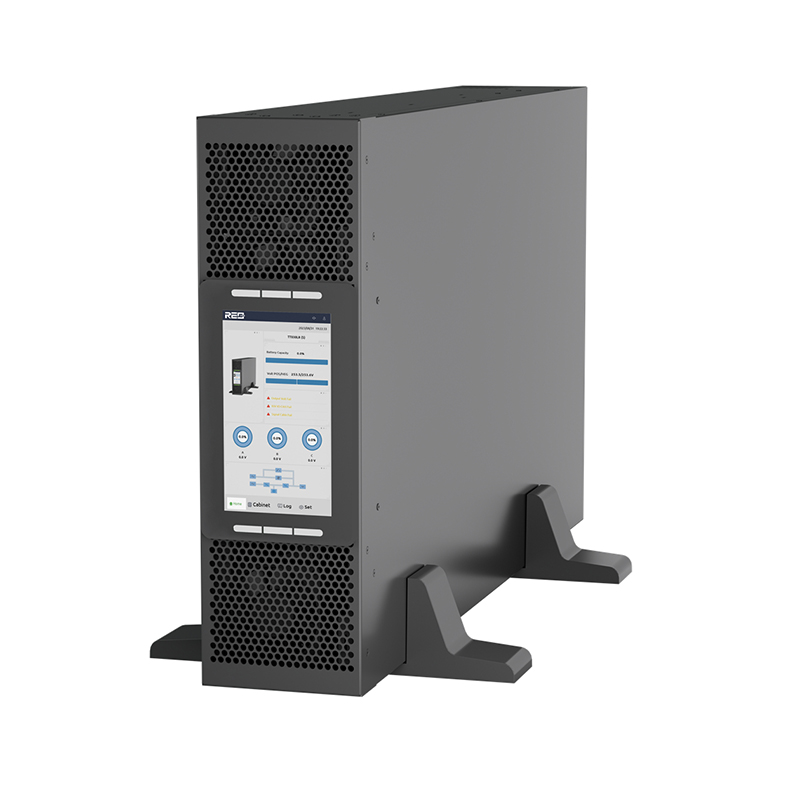

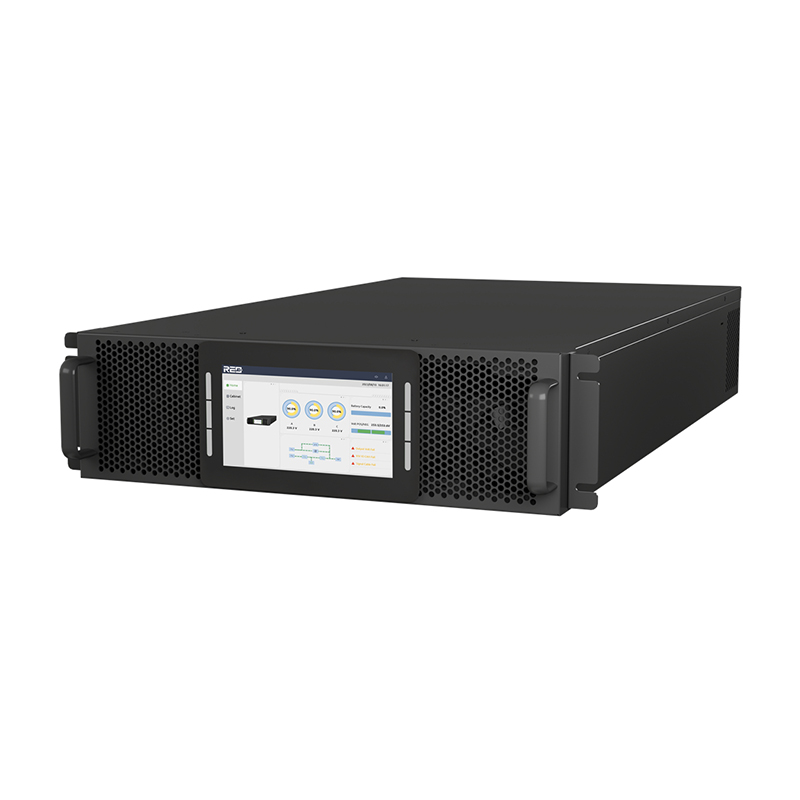

3Phase N+1 Redundant High Efficiency Rack and Tower Online UPS 10~60KVA
Short Description
Key Features
◆ The online double conversion
◆ Rack and Tower design with IGBT technology
◆ High performance and efficiency, input PF>0.99, THDi<3%, normal model & battery model efficiency >96%.
◆ DSP control technology
◆ High efficiency in battery mode ≥96%
◆ 7 inch touch LCD with IoT functions.
◆ Optional N+X parallel up to 8units
◆ Flexible configurations 3/3ph; 3/1ph; 1/1ph
◆ High power density, small volume, 30kW in 3U
◆ 50Hz/60Hz Frequency auto sensing
◆ Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆Three level inverter technology, lower harmonic,higher efficiency
◆ Options: External rack battery pack with internal 40pcs x 9Ah (4U)
Specification
| Model | RT33-10KRL | RT33-15KRL | RT33-20KRL | RT33-30KRL | RT33-40KRL | RT33-60KRL |
| Capacity | 10kVA/10kW | 15kVA/15KW | 20kVA/20KW | 30kVA/30KW | 40kVA/40KW | 60kVA/60KW |
| Phase | Three phase input and Three phase output | |||||
| Main input | ||||||
| Input | 3P 5W (3P+N+PE) | |||||
| Rate Voltage | 380/400/415VAC(L-L)；220/230/240VAC(L-N) | |||||
| Rate Freq. | 50/60Hz | |||||
| Input PF | >0.99 | |||||
| Current distortion | THDi<3%（100% Linear load） | |||||
| Voltage range | 304～478VAC(L-L)full load；304～228VAC (L-L) power derate from 100% to 75% | |||||
| Freq. range | 40-70Hz | |||||
| Battery | ||||||
| Rate voltage | ±240VDC | |||||
| Charging capacity | 20%*Pout | |||||
| Charging accuracy | ±1% | |||||
| Bypass | ||||||
| Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||
| Voltage range | Range: -40%- +25% , Settable, default -20%～+15% | |||||
| Frequency range | 50/60Hz，Settable：±1Hz，±3Hz，±5Hz | |||||
| Inverter | ||||||
| Rate voltage | 380/400/415VAC(L-L)；220/230/240VAC(L-N) | |||||
| Rate Freq. | 50/60Hz | |||||
| Output PF | 1 | |||||
| Voltage accuracy | ±1.0% | |||||
| Load response | <5% (20% - 80% -20% step load) | |||||
| Recovery time | < 20ms (0% - 100% -0% step load) | |||||
| Output THDu | <1%（linear load）,<5% （non-linear load according to IEC 62040-3） | |||||
| Overload | 110%,1 hour；125%,10 mins；150%,1 min；>150%,200ms | |||||
| Frequency accuracy | 0.1% | |||||
| Synchronize window | Settable，±0.5Hz-±5Hz，default ±3Hz | |||||
| Slew rate | Settable，0.5Hz/S-3Hz/S，default 0.5Hz/S | |||||
| Crest factor | 3:1 | |||||
| Phase Accuracy | 120°±0.5° | |||||
| System | ||||||
| Efficiency | Normal Mode≥96%；Battery Mode≥96% | |||||
| Display | LED + 7 inch touch LCD | |||||
| Certification- Safety | IEC62040-1, IEC60950-1 | |||||
| Certification- EMS | IEC62040-2；IEC61000-4-2(ESD)；IEC61000-4-3(RS)；IEC61000-4-4 (EFT)；IEC61000-4-5 (Surge) | |||||
| IP degree | IP20 | |||||
| Configuration | USB, RS232, RS485, Dry contact | |||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, Air filter, Cold start | |||||
| Environment | 0-40℃（operation）；-25℃~70℃（storage）；0-95% (Humidity, non-condensing ) | |||||
| Dimension (W*D*H) mm |
444*774*130 (3U) | 444*788*174 (4U) | 444*788*308 (7U) | |||
Products specification are subject to change without prior notice.
