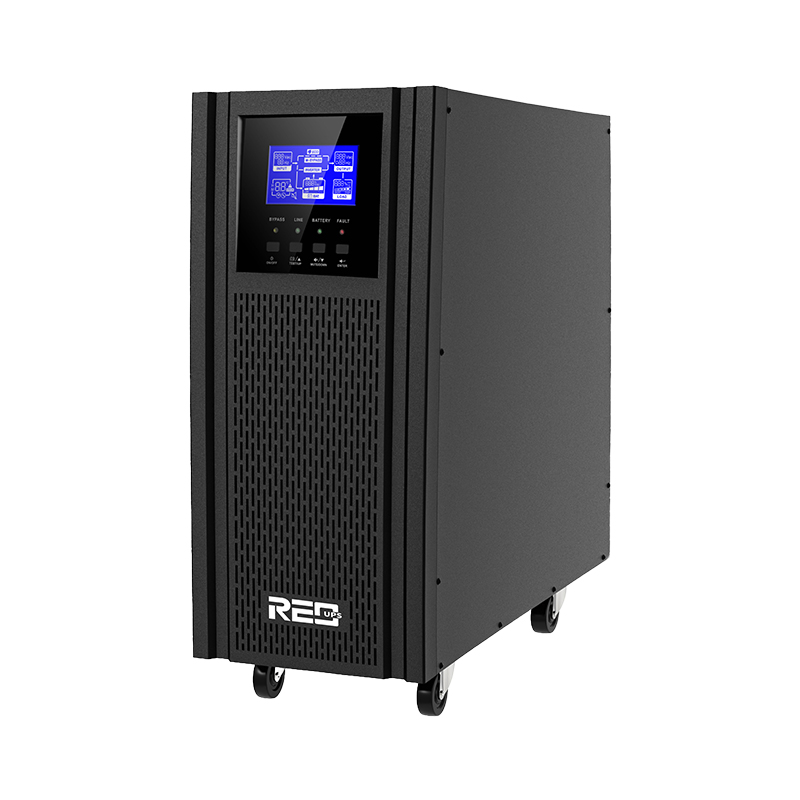

Key Features
◆ Output voltage configuration,single phase 220V/240V or dual phase 110V/115V/120V
◆ Galvanic isolation transformer between AC input and output in all operating mode
◆ DSP (Digital signal processors) control
◆ Active input power factor correction, input power factor>0.99
◆ Three level inverter technology, lower harmonic, higher efficiency
◆ Wide input voltage range 90V~300V and frequency range 40~70Hz
◆ Generator compatible
◆ Cold start function
◆ Remote on off (ROO) function (optional)
◆ Economic operation mode (ECO)
◆ 50Hz/60Hz Frequency auto sensing
◆ Frequency converter mode: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆ Laser printer and ultrasound system load acceptable (customized)
◆ Communications:RS232(standard), USB / MODBUS / RS485 / SNMP / AS400 card (optional)
◆ Reliable design, made with strong glass fiber base (FR4) double side PCB, well designed ventilation and conformal coating
Specification
| Accept Deeply Customized Products | ||||||
| Model | Warrior 10K | Warrior 10KL | Warrior 15K | Warrior 15KL | Warrior 20K | Warrior 20KL |
| Capacity | 10KVA/10KW | 15KVA/15KW | 20KVA/20KW | |||
| Topology | Double conversion online UPS with two phase galvanic isolation output transformer | |||||
| AC INPUT | ||||||
| Wiring | Biphase 3 wires (L1+L2+PE)-220V or 1phase 3 wires ( L+N+PE) -220V or 3phase 5 wires (L1, L2, L3, N+PE)-380V | |||||
| Rated Voltage | 208/220/230/240VAC | |||||
| Rated Frequency | 50Hz/60Hz | |||||
| Voltage Range | 110~285VAC±5VAC | |||||
| Frequency Range | （40~70)±0.5Hz | |||||
| Input Power Factor | >0.99 | |||||
| Bypass Voltage Range | 180~265VAC | |||||
| BATTERY & CHARGER | ||||||
| Rated Battery Voltage | 192VDC Internal |
192VDC/240VDC External | 192VDC Internal |
192VDC/240VDC External | 192VDC Internal |
192VDC/240VDC External |
| Battery Capacity | 12V/7AH x 16pcs | External battery depends | 12V/7AH x 32pcs | External battery depends | 12V/9AH x 32pcs | External battery depends |
| Backup Time | >6mins @ half load | >3mins @ half Load | >2mins @ half load | |||
| Charging Current | Standard model with internal battery, 10K: 2A/4A (settable by LCD) ; 15K~20K:4A Long backup time model: 4A/8A(optional) |
|||||
| Optional Configuration to Order | 1. Battery capacity 7AH/9AH 2. Battery quantity 16pcs or 32pcs |
|||||
| AC OUTPUT | ||||||
| Wiring | 1 phase 3 wires ( L/N+PE) or biphase 5 wires（L1/N1+L2/N2+PE） | |||||
| Output Voltage | High voltage 208/220/230/240VAC ; Low voltage 110/120VAC | |||||
| Output Frequency | 50/60±4Hz (Synchronized range); 50/60Hz±0.1 (Battery mode) | |||||
| Voltage Regulation | ±3% | |||||
| Waveform | Pure sine wave | |||||
| Distortion (THDV%) | <2% (Linear load) ; <7% (Non-Linear load) | |||||
| Output Power Factor | 1.0 | |||||
| Overload Capability | 10min@105%~125% ; 60s@125%~150% ; 0.5S@>150% | |||||
| Transfer Time | Line mode - Battery mode : 0ms | |||||
| HMI | ||||||
| LCD Display | Input mains voltage, frequency, load level, operation mode, health status | |||||
| Standards Communication Interface | (1) RS232 port | |||||
| Optional | (2) EPO / ROO port (3) Intelligent slot (4) USB port (5) NMC Card: Support remote monitor the UPS via Smart phone APP, web page,PC monitor software , support server / NAS shutdown (6) CMC MODBUS card (7) AS400 Relay card (8) SNMP card |
|||||
| ENVIRONMENT | ||||||
| Temperature Range | -10~50oC | |||||
| Relative Humidity | 0-98%（Non-condensing） | |||||
| Acoustics Noise | <55dB @ 1 meters | |||||
| PHYSICAL | ||||||
| Dimension WxDxH (mm) |
296x700x720 | 299x698x700 | 400x860x844 | 296x700x720 | 400x860x844 | 296x700x720 |
| N.W (kg) | 105 | 72.9 | 195.6 | 109 | 199 | 111 |
• Product specifications are subject to change without prior notice
• Ambient temperature>30°C, output power factor is 0.9
• Model with"L" mean long back up time model, without "L" mean standard model

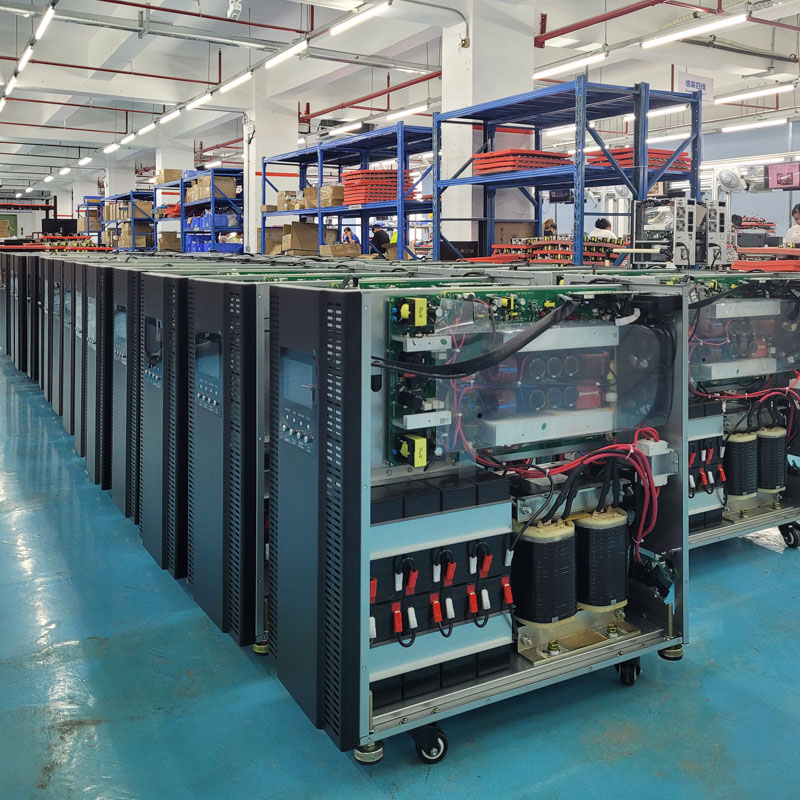

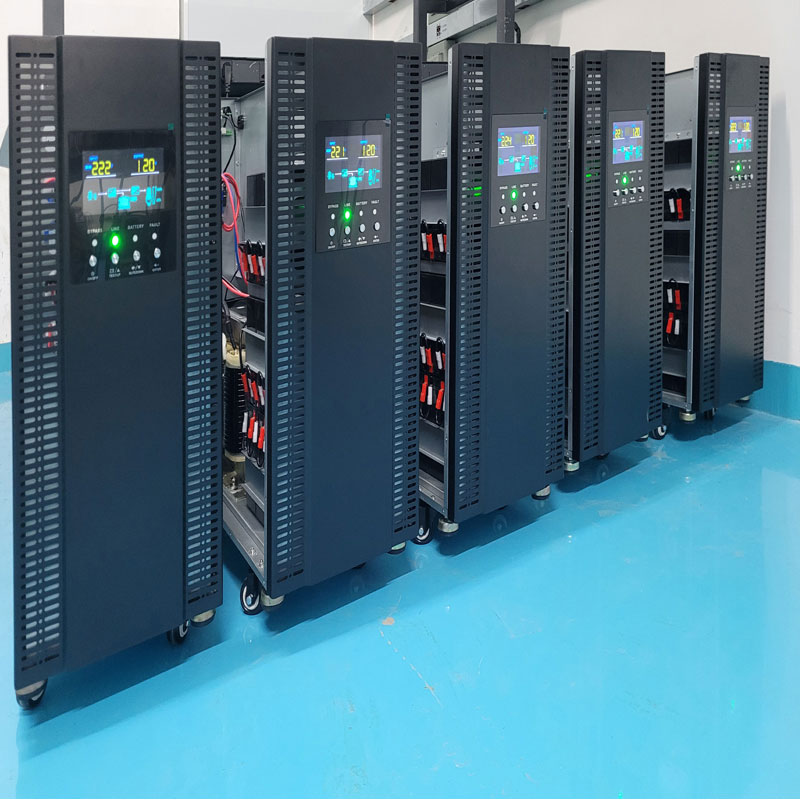

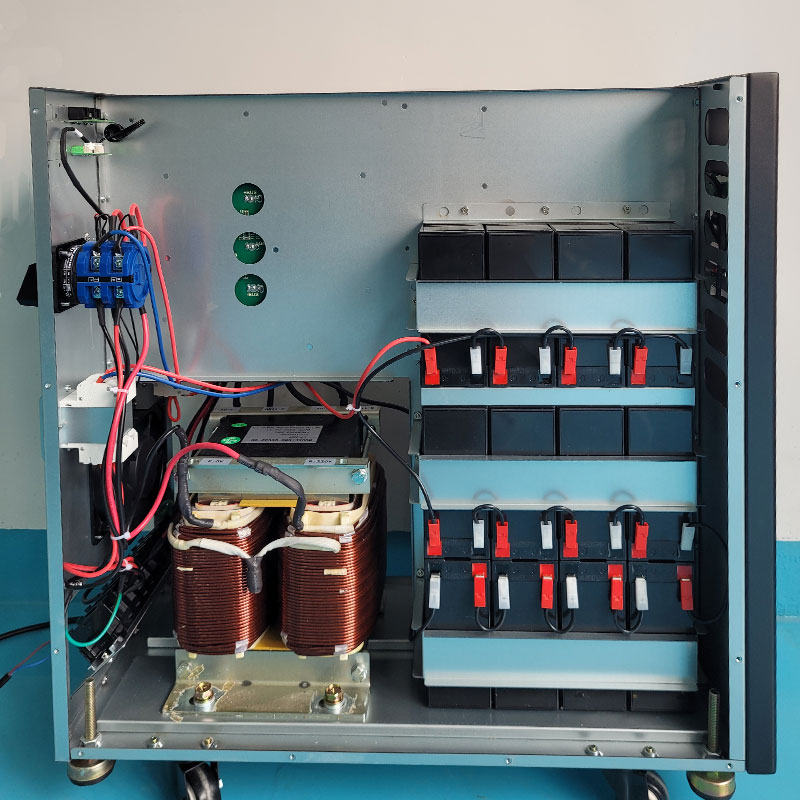

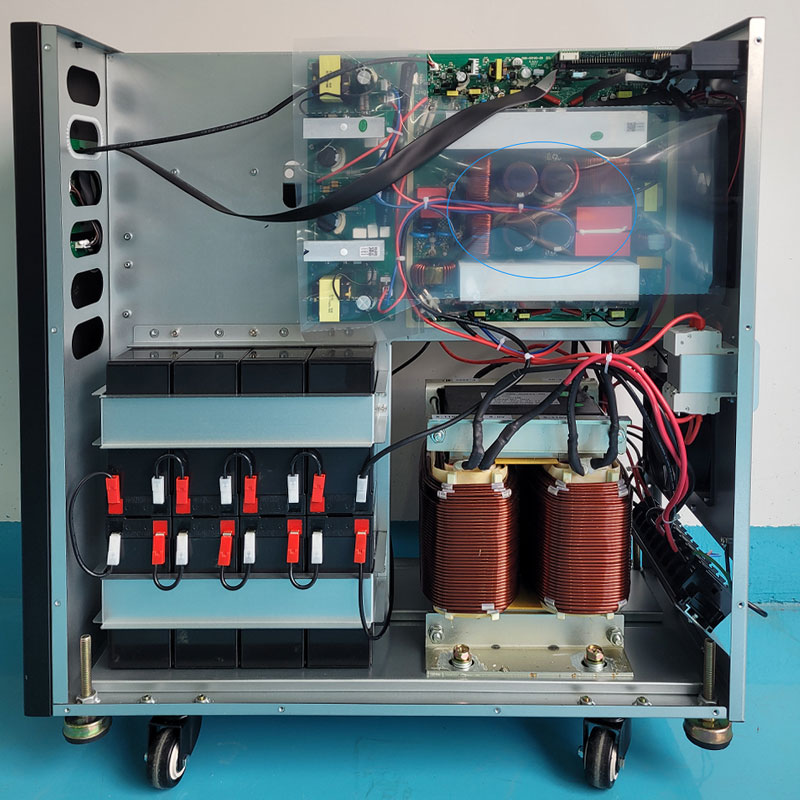

Production images
