Key Features
◆ Auto restarts when AC recovers
◆ CPU controlled
◆ Built-in AVR function
◆ Silence setup
◆ Wide input voltage range
◆ Automatic charging (offline charging)
◆ Battery low voltage protection
◆ Overload and short circuit protection
◆ Compact size, light weight & low noise
◆ Fault alarms and State Warnings
◆ LED display or LCD display selectable
◆ Optional USB, RS232 monitoring function
Specification
| Model | Guardian 600 | Guardian 1000 | Guardian 1200 | Guardian 1500 | Guardian 2000 | Guardian 3000 |
| Capacity | 600VA/360W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W | 3000VA/1800W |
| INPUT | ||||||
| Input voltage | 110V/120VAC or 220/230/240VAC | |||||
| Input voltage range | 85~150VAC/145~290VAC | 85~145VAC/175~275VAC | ||||
| Input frequency range | 45~65Hz | |||||
| OUTPUT | ||||||
| Output voltage | 110V/120VAC or 220/230/240VAC | |||||
| Output voltage range | 102~132VAC/200~255VAC | 102~132VAC/200~240VAC | ||||
| Output frequency | 50±0.5Hz / 60±0.5Hz (Auto sensing) | |||||
| Wave form | PWM (Battery mode) | |||||
| Transfer time | Typical 2~6ms; 10ms Max | |||||
| BATTERY | ||||||
| QTY & battery capacity | 1pc*12V7Ah | 1pc*12V9Ah | 2pcs*12V7Ah | 2pcs*12V9Ah | 2pcs*12V9Ah | 4pcs*12V9Ah |
| Charging period | 4~6 hours recover to 90% capacity | |||||
| PROTECTION | ||||||
| PROTECTION | (1) Battery low voltage protection (2) Overload protection (3) Short circuit protection | |||||
| MANAGEMENT | ||||||
| LCD or LED, RJ45/11 & USB | Optional | |||||
| PHYSICAL | ||||||
| Net weight (1pc, kg) | 3.9 | 4.3 | 7 | 9 | 11 | 20 |
| Unit dimension (mm) | 284x95x140 | 345x146x162 | 345x122x192 | 412x145x210 | ||
| ENVIRONMENT | ||||||
| Temperature range | 0~40oC | |||||
| Humidity | 20%~90% | |||||
| Noise level | Less than 40dB | |||||
Product specifications are subject to change without prior notice

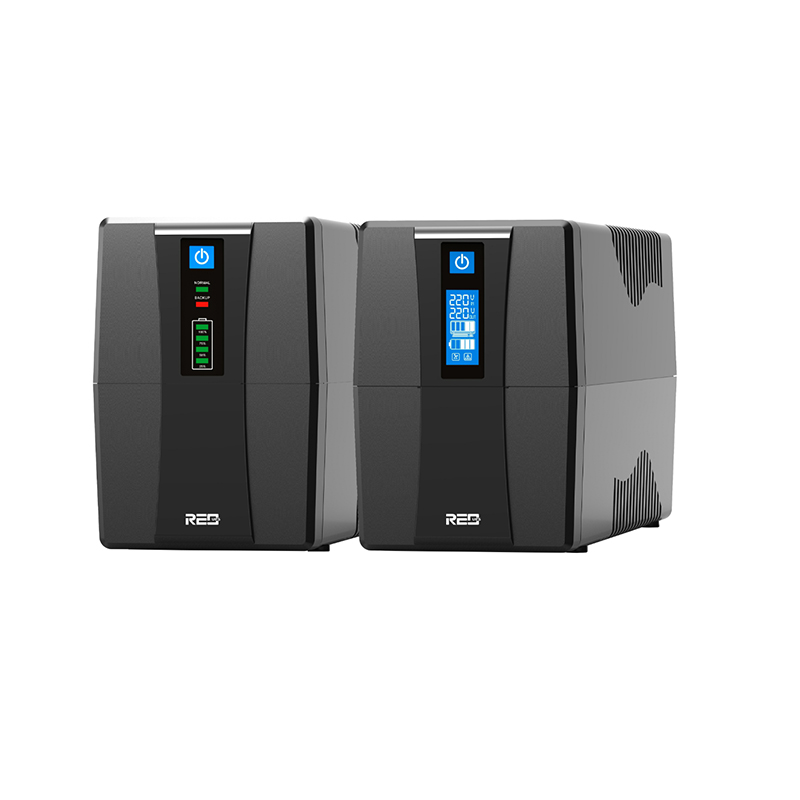

Production images
Product packaging
FAQ
-
1. What kinds of payment methods do you accept?
-
2.What’s your price and MOQ?
-
3. What is the input voltage range for your UPS systems?
-
4. Can the UPS be used with a generator?
-
5. What is the typical battery life of your UPS units?
-
6.How long does the UPS provide backup power?
-
7.Is the UPS suitable for outdoor use?
