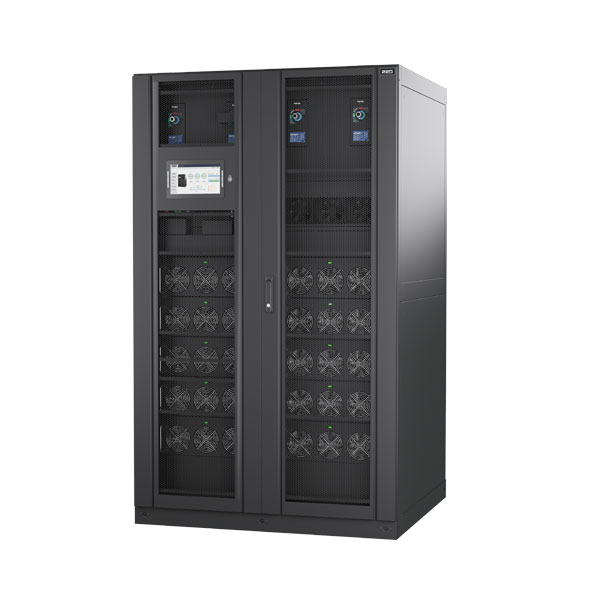

Key Features
◆ The rack modular, hot-swapping, N+X redundant, online double conversion
◆ High performance and efficiency, input PF>0.99, THDi<3%, normal model & battery model efficiency >96%.
◆ Intelligent system self-diagnosis scheme, large capacity of history record storage space
◆ Redundancy fan design in power module, increasing the system reliability and tolerance.
◆ Top/bottom cable entry, flexible for different field installation.
◆ Easy for power expansion, installation and maintenance.
◆ Applications: Government, Finance, IT, Education, Transportation, Broadcasting, Medical, Energy, etc
Specification
| Model | M120/60 | M180/60 | M200/50 | M240/60 | M300/60 | M480/60 | M500/50 | M600/60 |
| Capacity | 120KVA/120KW | 180KVA/180KW | 200KVA/200KW | 240KVA/240KW | 300KVA/300KW | 480KVA/480KW | 500KVA/500KW | 600KVA/600KW |
| Phase | Three phase input and Three phase output | |||||||
| Main input | ||||||||
| Input | 3P5W (3P+N+PE) | |||||||
| Rate Voltage | 380/400/415VAC(L-L); 220/230/240VAC(L-N) | |||||||
| Rate Freq. | 50/60Hz | |||||||
| Input PF | >0.99 | |||||||
| Current distortion | THDi<3%（100% Linear load） | |||||||
| Voltage range | 304~478VAC(L-L)full load；304~228VAC (L-L) power derate from 100% to 75% | |||||||
| Battery | ||||||||
| Rate voltage | ±240VDC | |||||||
| Charging capacity | 20%*Output Capacity | |||||||
| Charging accuracy | ±1% | |||||||
| Bypass | ||||||||
| Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||||
| Voltage range | Range: -40%- +25% , Settable, default -20%～+15%； | |||||||
| Overload | 125%, long time operation 125%< load <130%, 10mins ; 130%<load <150%, 1min ; Load>150%,300ms |
110%, long time operation 110%< load<125%, 5 mins ; 125%<load<150%,1 min ; Load >150%,1 second |
||||||
| Inverter | ||||||||
| Rate voltage | 380/400/415VAC(L-L)；220/230/240VAC(L-N) | |||||||
| Rate Freq. | 50/60Hz | |||||||
| Output PF | 1 | |||||||
| Voltage accuracy | ±1.0% | |||||||
| Load response | <5% (20% - 80% -20% step load) | |||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | |||||||
| Output THDu | <1%（linear load）,<5% （non-linear load according to IEC 62040-3） | |||||||
| Overload | 110%,1 hour；125%,10 mins；150%,1 min；>150%,200ms | |||||||
| Frequency accuracy | 0.001 | |||||||
| Synchronize window | Settable，±0.5Hz-±5Hz，default ±3Hz | |||||||
| Slew rate | Settable，0.5Hz/S-3Hz/S，default 0.5Hz/S | |||||||
| Crest factor | 3:1 | |||||||
| Phase Accuracy | 120°±0.5° | |||||||
| System | ||||||||
| Efficiency | Normal Mode≥96%；Battery Mode≥96% | |||||||
| Display | LED + 7 inch touch LCD | LED + 10 inch touch LCD | ||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | |||||||
| Certification- EMS | IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT) ; IEC61000-4-5 (Surge) | |||||||
| IP degree | IP20 | |||||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start, Air filter | |||||||
| Option | SNMP card, AS400 card, Parallel kit, SPD, LBS | |||||||
| Environment | 0-40℃(operation); -25~70℃ (storage); 0-95% (Humidity, non-condensing) | |||||||
| Noise(dB)(1 meter) | 72dB @ 100% load, 69dB @ 45% load | |||||||
| Dimension | ||||||||
| Cabinet(W*D*H)mm | 600*1000*1600 | 600*1000*2000 | 1200*1100*2000 | |||||
| Module(W*D*H)mm | 442*659*174 | |||||||
