Key Features
◆ High-frequency online double conversion
◆ Protection Level IP55

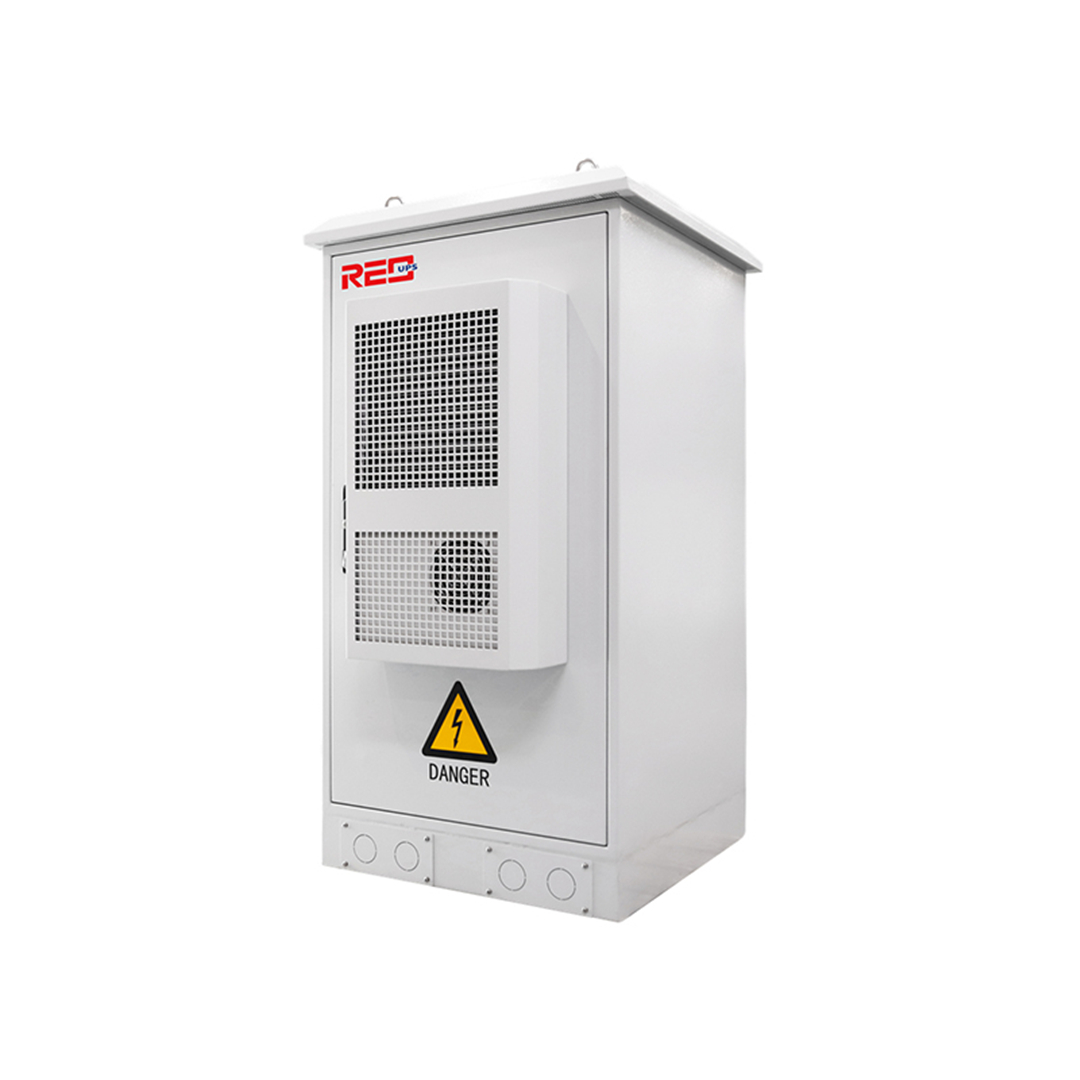

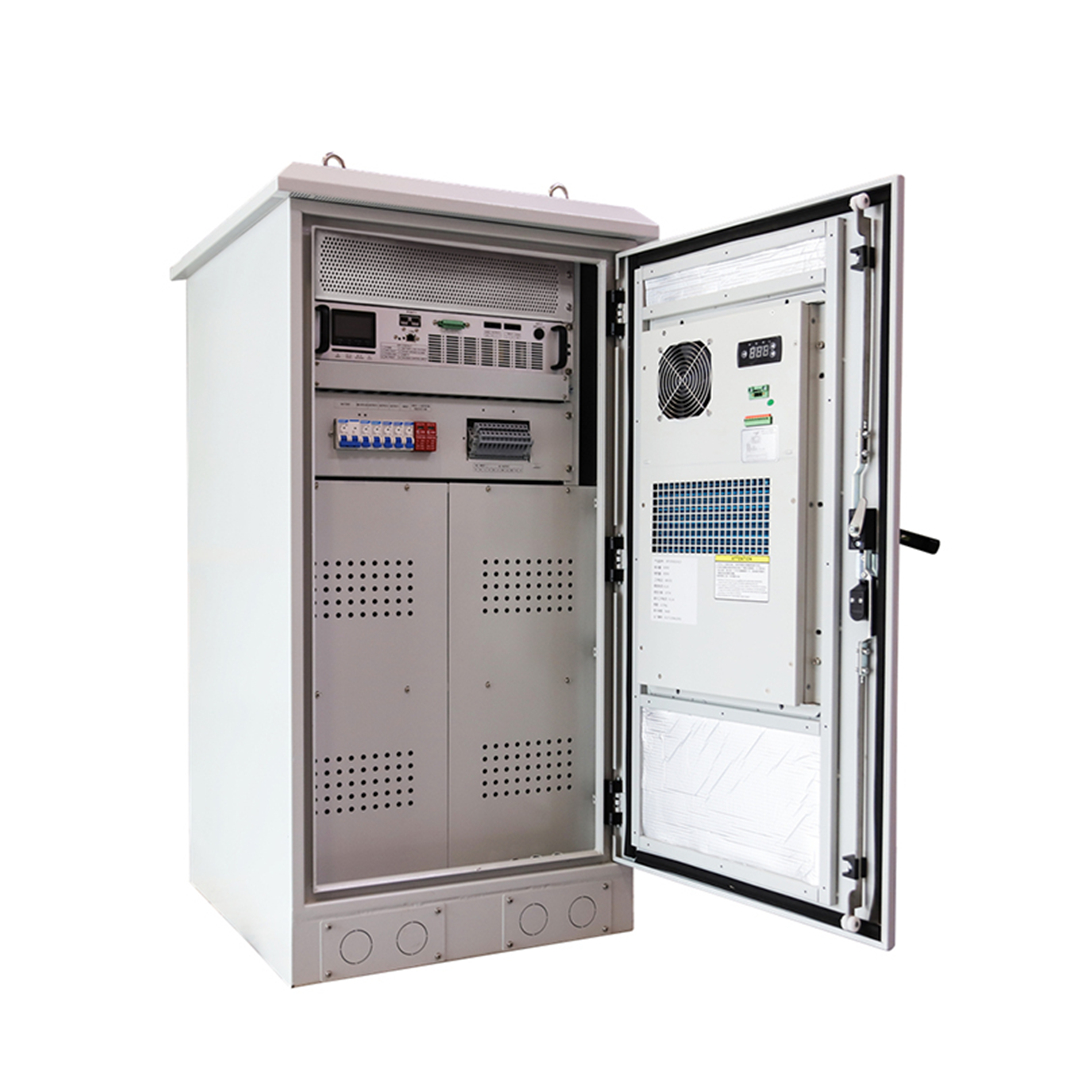

◆ Can add air conditioner ( Optional) for high temperature areas
◆ With waterproof and the filtration dust inlet
◆ High temperature resistant, anti-cold
◆ Active PFC, input PF > 0.99
◆ Wide input voltage: 90V-300V
◆ Wide input frequency: 40-70Hz
◆ Cold start capability
◆ With a sun protection, heat insulation, roof ventilation
◆ Frequency conversion: 50Hz input / 60Hz output or 60Hz input / 50Hz output
◆ Robust design: FR4 PCB, optimized cooling, conformal coating
◆ Support CVCF (Constant Voltage,Constant Frequency) operation, support special voltage ,frequency devices, and is ideal for highly sensitive devices
Specification
| Model | HQ1101 | HQ1102 | HQ1103 | HQ1106 | HQ1110 |
| Capacity | 1KVA/900W | 2KVA/1800W | 3KVA/2700W | 6KVA/5400W | 10KVA/9000W |
| Phase | Single phase in and Single phase out | ||||
| INPUT | |||||
| Range voltage | 220/230/240VAC | ||||
| Voltage range | 90~300VAC | ||||
| Frequency Range | 40Hz~70Hz | ||||
| Soft Start | 0~100% 5sec | ||||
| Power factor | ≥0.99 | ||||
| OUTPUT | |||||
| Voltage Precision | 208/220/230/240VAC (±1%) | ||||
| Frequency Precision | 50/60±4Hz(Sync Mode)；50/60Hz±0.1(Battery Mode) | ||||
| Power factor | 0.9 | ||||
| Wave Distortion | <2%(Linear Load); <7%(Non-Linear Load) | ||||
| Overload capability | 1Min@105%~125%Rated Load ; 30Sec.@125%~150%Rated Load ; 0.5Sec.@>150%Rated Load | 10Min@105%~125%Rated Load ; 60Sec.@125%~150%Rated Load ; 0.5Sec.@>150%Rated Load | |||
| Crest Factor | 3:1 | ||||
| Transfer time (ms) | 0ms (AC to DC) | ||||
| Battery Capacity | Internal Lead Acid Battery 12VDC 100AH x 4PCS |
Internal Lead Acid Battery 12VDC 100AH x 16 or 20PCS |
|||
| DC voltage | 48VDC | 48VDC | 48VDC | 192 / 240VDC | 192 / 240VDC |
| Charging current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4A | 4A |
| EFFICIENCY | |||||
| Line Mode | 89% | 90% | 91% | 94% @ 240 VDC 92% @ 192VDC |
|
| Battery Mode | 86% | 87% | 88% | ||
| ECO Mode | 95% | 97% | |||
| PANEL DISPLAY | |||||
| LCD | Load level/Battery level ,Battery indicator,Utility power,Inverter ,Bypass,Overload ,Fault | ||||
| COMMUNICATIONS | |||||
| Communications interface | Standard RS232; Options: SNMP Card,AS400 Relay card, EPO port,USB port | ||||
| WORK ENVIRONMENT | |||||
| Temperature | -40ºC~55ºC (with air conditioner) -10ºC~40ºC (without air conditioner) |
||||
| Storage Temperature | -25ºC~55ºC | ||||
| Humidity | 0~95%(Non-condensing) | ||||
| Elevation | <1500m | ||||
| Protection level | IP55 | ||||
| Cooling System | |||||
| Cooling Fans | AC FAN 220V 2600R x 2 | Customized | |||
| Cabinet Air Conditioner | AC 220V 600W | ||||
| PHYSICAL | |||||
| N.W (without battery) | 103.4KGS | 104KGS | 105.6KGS | 150KGS | 156.8KGS |
| G.W (without battery) | 125.4KGS | 126KGS | 127.6KGS | 150KGS | 156.8KGS |
| Dimension WxDxH (mm) | 600×809×934 (with air conditioner) 600x670x934 (without air conditioner) |
940x940x1770 (without air conditioner) | |||
Product specifications are subject to change without prior notice.
